Open armrest commode with rear opening for optimal positioning, swing-away height-adjustable legrests, and pressure care seat options for user comfort.

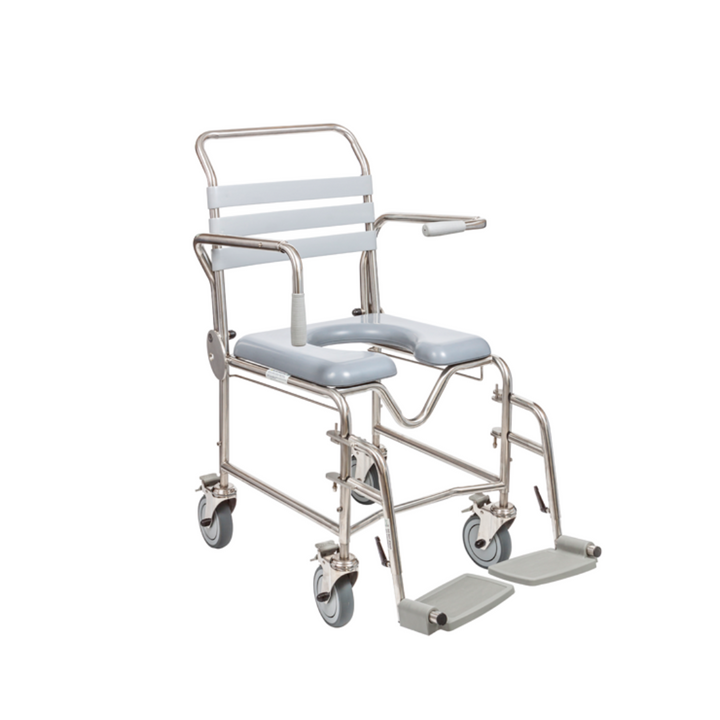

Adult Height Adjustable Juvo Mobile Shower Commode - 2000 Series

SKU: AR-3105-N

Description
Detailed Specifications
Downloads
Description +

Hygiene & Accessibility
• Rear open design enables easy positioning over the toilet
• Deeper front trough provides enhanced access for cleaning
• Seamless, easy-clean polyurethane padded seats (open or closed front options available)
• Flexible, antibacterial, non-woven back straps conform to body shape while preventing skin tears
• Open armrest design for improved hygiene access and natural hip/thigh positioning
• Integral stainless steel pan carrier guides with a back-saver design: self-supporting while removing the bowl/pan to reduce strain

Robust Design & Adjustability
• Durable Grade 304 stainless steel frame, resistant to corrosion and ideal for wet area use
• Reinforced seat, back frame, and armrests for weight-bearing support
• Height-adjustable commode frame with four settings for improved client positioning
• Two-position height-adjustable swing-away armrests for easy side transfers
• Juvo registered “Klipps” seat system for effortless removal and cleaning
• Patented “TearSafe” swing-away legrests – height adjustable, no exposed hardware, flip-up footplates

Mobility & Safety
• 125mm stainless steel castors (all with total locking brakes) for smooth and secure maneuverability
• Locking safety arms provide added user stability
• Stylish, low-profile base designed to instil confidence and fit in tight spaces
• Safe working load and serial number permanently etched in stainless steel for asset tracking

Please Note: seats must be purchased separately

Detailed Specifications +
• Seat Width 460mm
• Width Between Arms 490mm
• Overall Height930mm - 1020mm
• Overall Width540mm
• Overall Depth850mm
• Backrest Height340mm
• Armrest Height - High240mm
• Armrest Height - Low 200mm
• Seat to Heel 410mm - 575mm
• Anterior Seat Height (4 settings at 30mm increments) 505mm - 595mm
• Posterior Seat Height 475mm - 565mm
• Toilet Bowl Clearance - Height500mm
• Toilet Bowl Clearance - Width 410mm
• Toilet Bowl Clearance - Between Pan Carrier 365mm
• Toilet Bowl Clearance - Underside Pan Carrier 480mm
• Wall to Rear of Aperture 225mm
• Max User Weight 200kg
Downloads +
Compliance Information

AS/NZS 3973:2009
ARTG#191619

Australian Standards

AS/NZS 3973:2009

ARTG Information

191619
