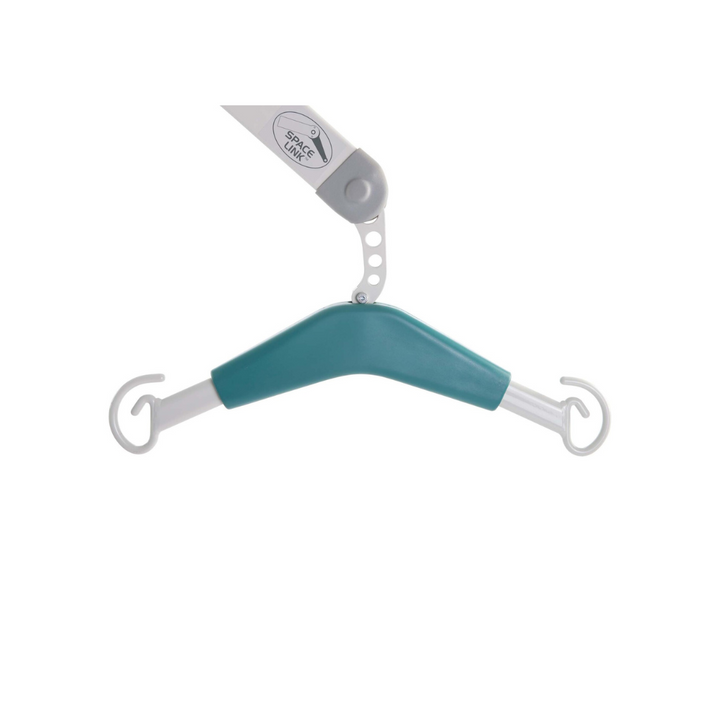

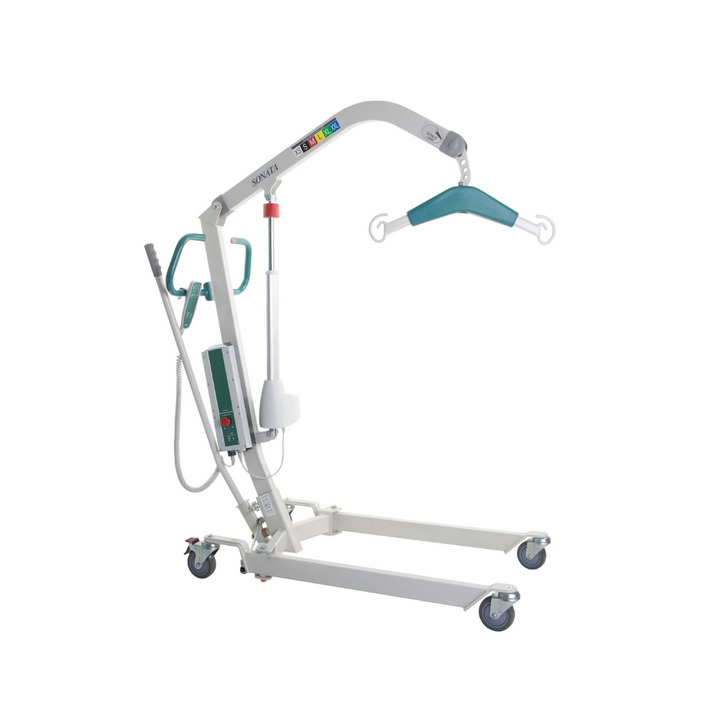

SONATA 150, Manual Spread Leg - With Standard Yoke Spreader Bar

Request a quote for pricing.

The lightweight and compact Sonata 150 is an easy-to-use, everyday patient lifter designed for comfort and efficiency in care settings. It features SPACE LINK™ Technology, which optimises lifting performance and enhances usability.

What is SPACE LINK™ Technology?
SPACE LINK™ is an innovative design feature that increases the hoist’s maximum lifting height and improves its ability to perform floor lifts. It helps create more room for safe, efficient patient transfers and is compatible with both standard spreader bars and pivot frames.

Add to Wishlist Request Quote
SKU: LM-3815-B
Description

Key Features

  • Lightweight and Compact: The Duracare Sonata is a mobile patient lifter with a safe working load of 150 kg, ideal for everyday use in care settings.
  • Ergonomic Design: Built with an innovative and ergonomic frame to support both user comfort and carer efficiency.
  • SPACE LINK™ Technology: Enhances patient lift space by increasing lifting height and improving floor lift capability.

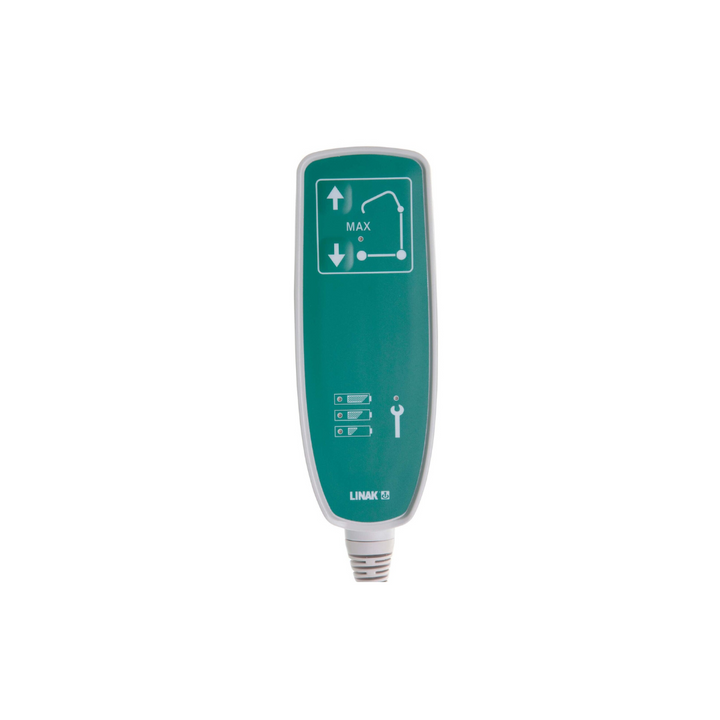

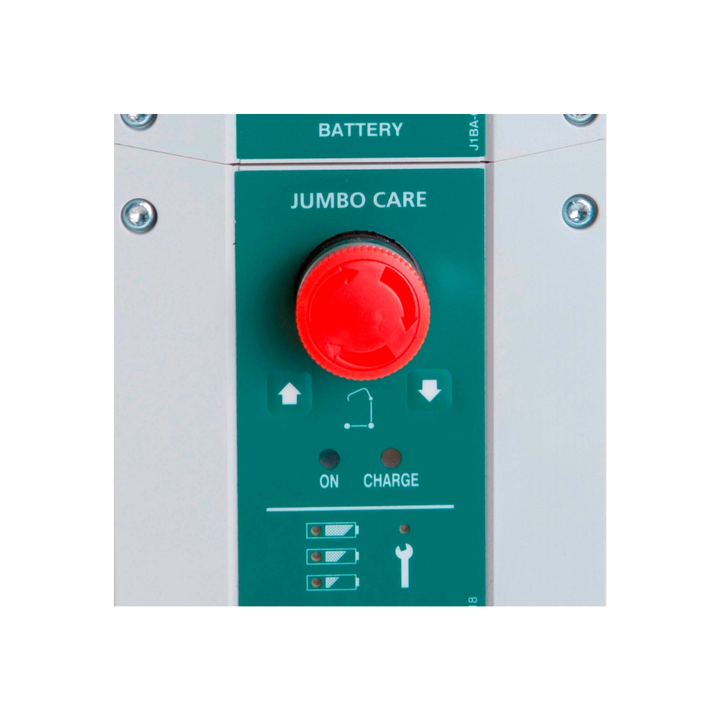

  • Advanced Diagnostics: Features the Linak Jumbo Care system for real-time diagnostics and service monitoring.
  • Reliable Power: Operated by a LA44 linear actuator, compliant with European Standards for consistent performance.

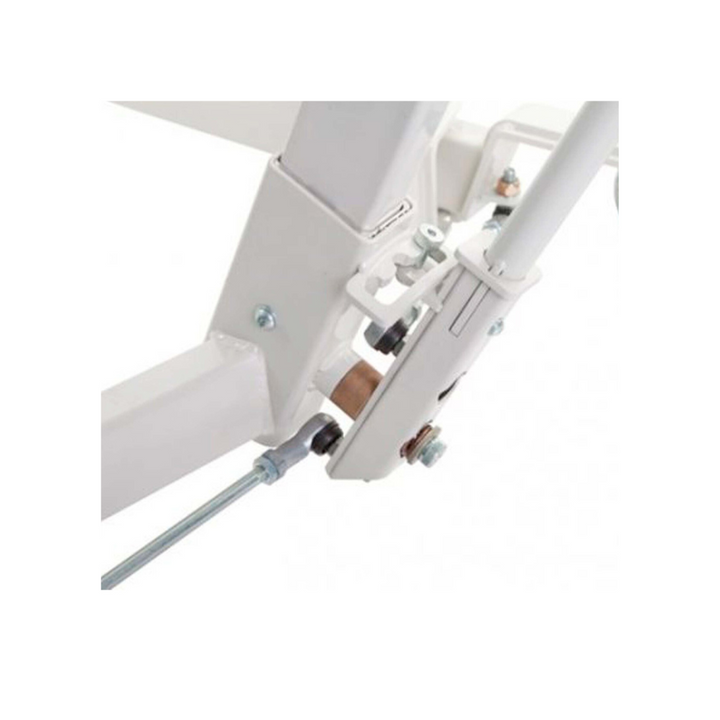

  • Manual Leg Adjustment: Includes a manual leg spread for stable positioning and smooth transfers.
Detailed Specification

Specifications
Base Dimensions
• Base Length: 1005 mm
• External Width (Closed): 605 mm
• External Width (Open): 1070 mm
• Internal Width (Closed): 510 mm
• Internal Width (Open): 975 mm
• Base Width Adjustment: 3-position manual

Clearance & Reach
• Under-Bed Clearance: 130 mm
• Under-Base Height: 55 mm
• Maximum Hoist Reach: 875 mm
• Minimum Hoist Reach: 555 mm
• Hoist Reach at Max Height: 555 mm
• Lifting Range
• Minimum Yoke Height: 420 mm
• Maximum Yoke Height: 1735 mm
• Average Lift Range: 870 mm

Weight & Capacity
• Lifter Weight: 41 kg
• Heaviest Part (for transport): 22 kg
• Maximum User Weight: 150 kg
• Minimum Storage Height: 1260 mm
