SONATA 150, Electric Spread Leg - With Standard Yoke Spreader Bar

Request a quote for pricing.

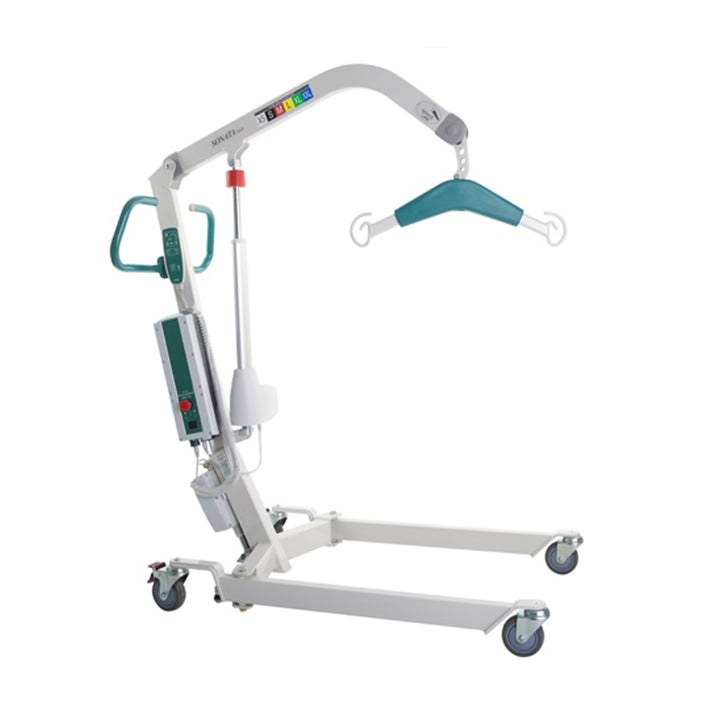

The Sonata ELS is a lightweight, compact mobile patient lifting hoist featuring an innovative and ergonomic design.

Easy to use for everyday lifting, it has a safe working load of 150kg, delivering impressive lift capacity in a small, portable hoist.

Building on the versatility of the original Sonata, the Sonata ELS adds Electric Leg Spread for effortless leg adjustment, especially helpful on carpeted floors or when lifting heavier clients.

Add to Wishlist Request Quote
SKU: LM-3805-B
Description

Key Features

• Lightweight and Compact: The Duracare Sonata ELS is a compact mobile patient lifter with an innovative, ergonomic design—ideal for everyday use.
• Electric Leg Spread: Provides easy leg adjustment, especially useful on carpeted surfaces or when transferring heavier clients.
• Outstanding Lift Capacity: Offers exceptional lifting performance in a small footprint, maintaining versatility and ease of use.
• Enhanced Functionality: Includes all the features of the original Sonata, now with the added advantage of electric leg operation.

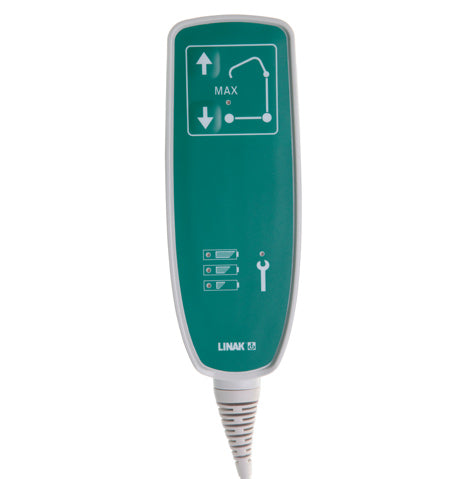

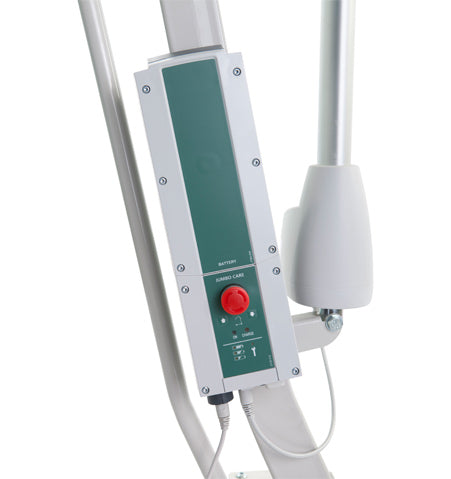

• Smart Control System: Equipped with the Linak Jumbo Care advanced diagnostic system for improved monitoring and servicing.
• Reliable Power: Operated by a LA44 linear actuator, compliant with European Standards.

SPACE LINK™ Technology:
• Increases maximum lifting height
• Enhances floor lift capability
• Optimises patient space during transfers
• Compatible with both standard spreader bars and tilt/pivot frames

Detailed Specification

• ​Maximum User Weight: 150kg
• Base Length: 1100mm
• External Base Width Closed/Open: 670/1075mm
• Internal base Width Closed/Open: 570/970mm
• Under Bed Clearance: 130mm
• Min/Max Yoke Height: 400/1735mm
• Average Lift Range: 880mm
• Weight: 41kg
• Min Storage Height: 1250mm
• Under Base Height: 55mm
• Min/Max Hoist Reach: 515/865mm
